360 Global Projects Workflow
360 Global continues to evaluate engineering software for their “Interoperability” covering each of the Engineering disciplines. It is this “Interoperability” that delivers Design efficiency and Engineering cost saving. Engineering Calculations and associated Database Development are included

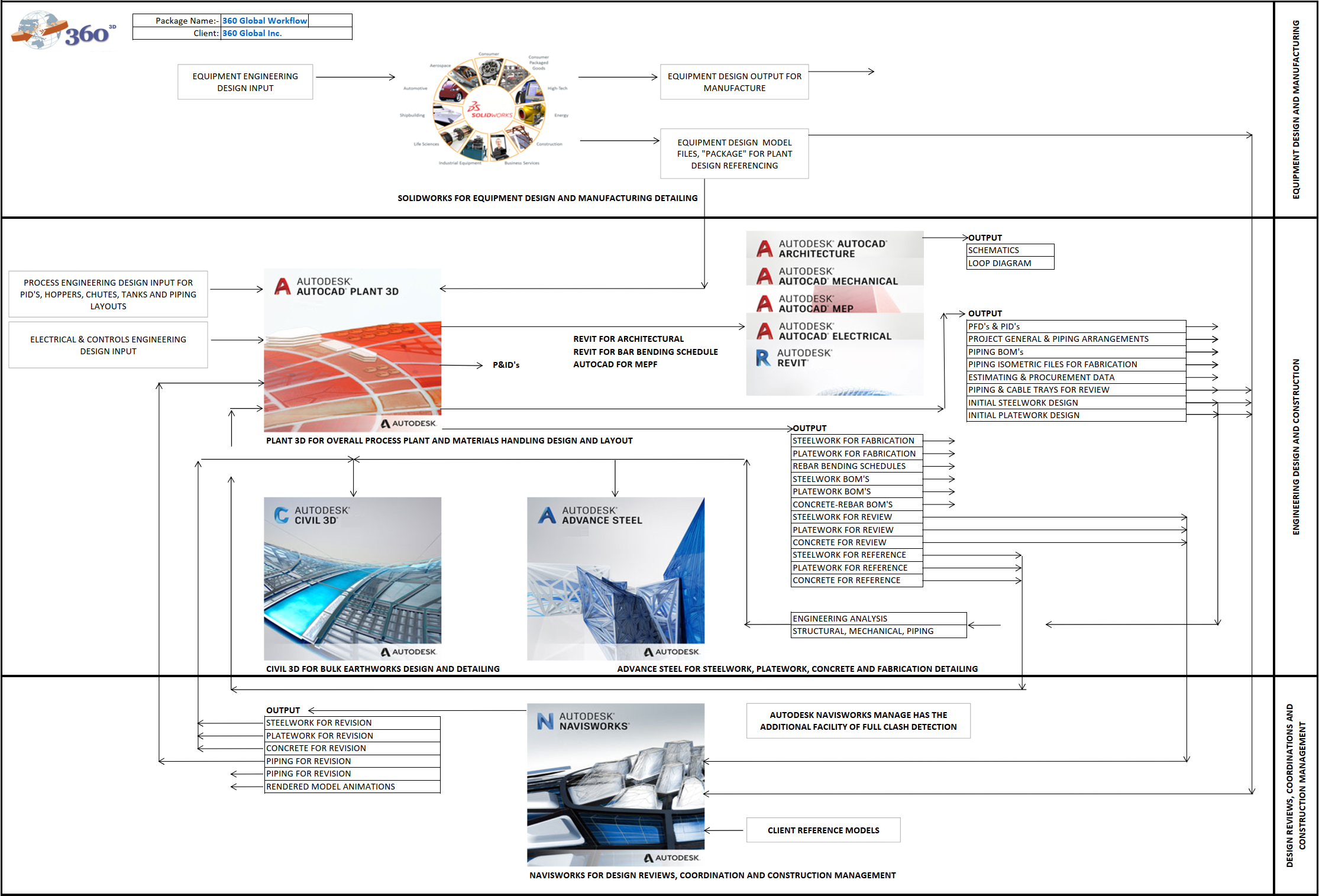

360 Global Workflow
The core primary ingredients for a successful project are to firstly develop the Project Process Design and 2D Layouts.
360 Global strictly adheres to this principal, never prematurely jumping into the more detailed 3D Modeling and Database DED, Detail Engineering Design

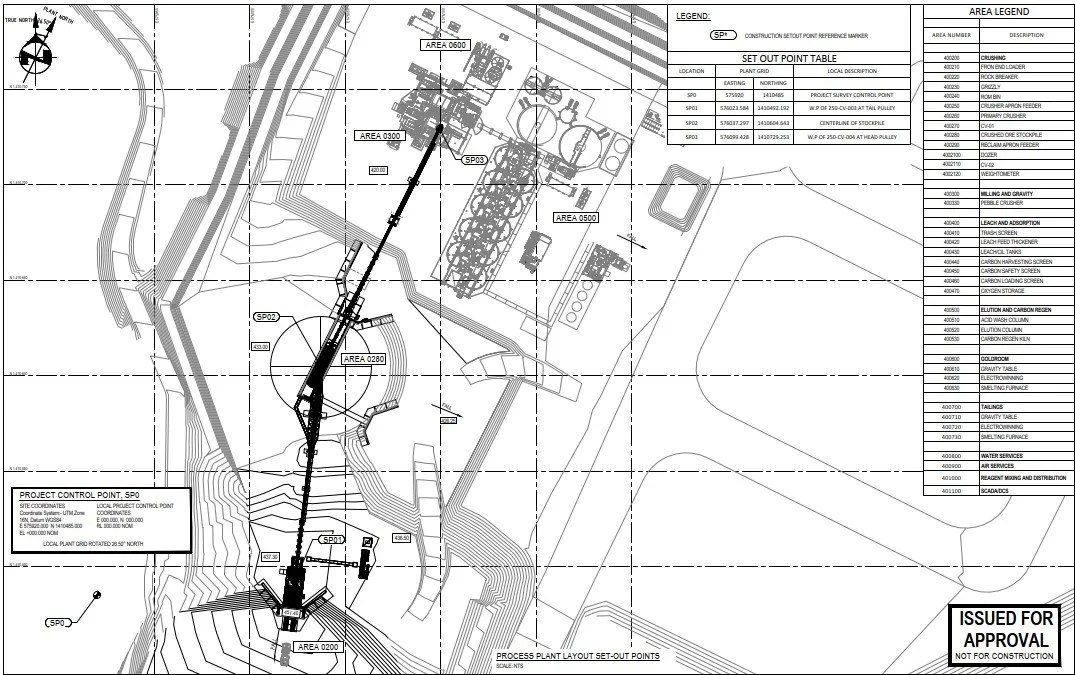

Process Design and 2D Layouts

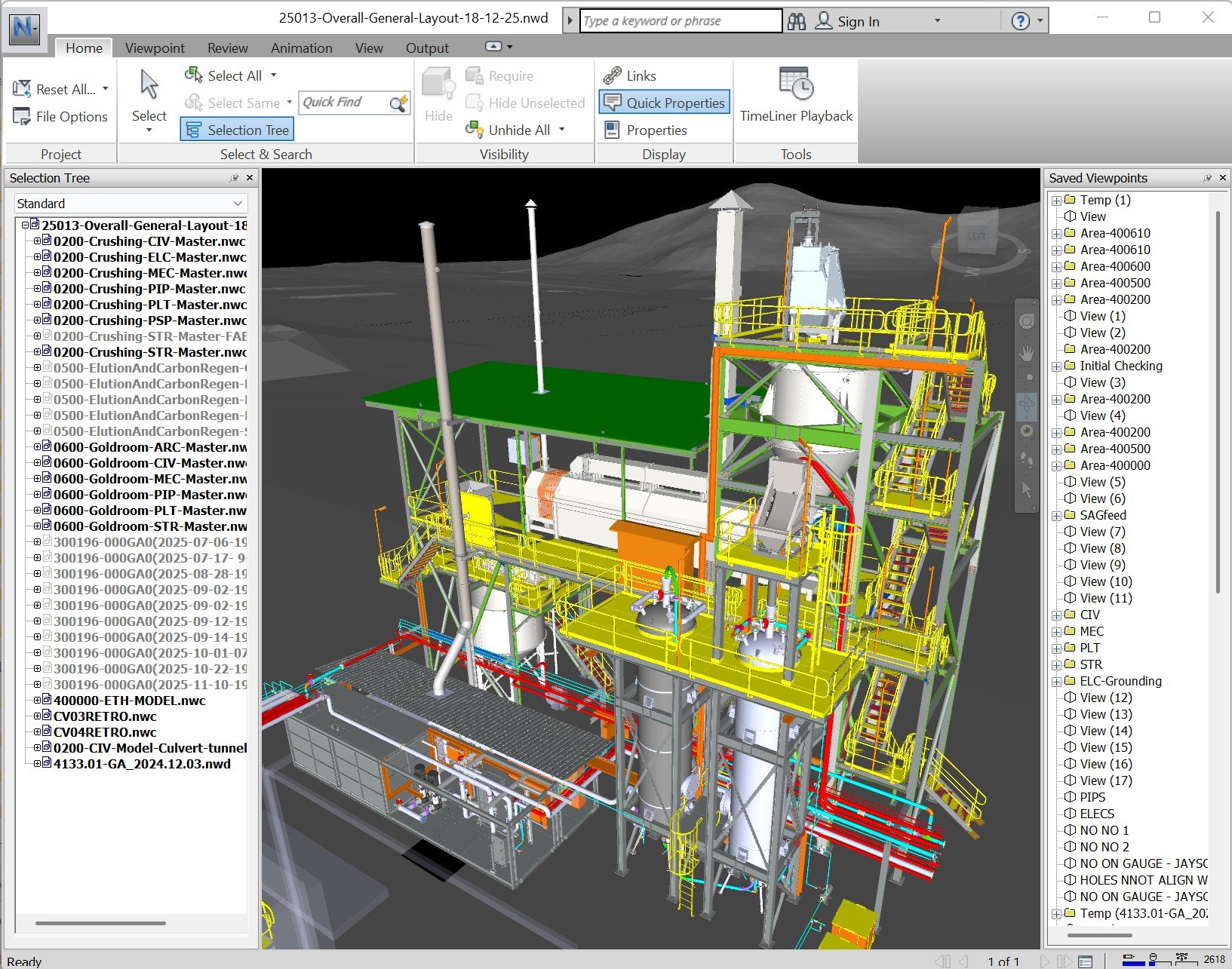

All project documentation goes through a rigorous checking procedure. However 360 Global has developed a multi phase checking procedure utilising “Navisworks”. This procedure includes full 3D model and data coordination, clash detection and client review and approval. The image above displays the Selection Tree, Model Display and Viewpoints checking procedure
Design Check and Coordination
For further information please request through our “Contact Us” page

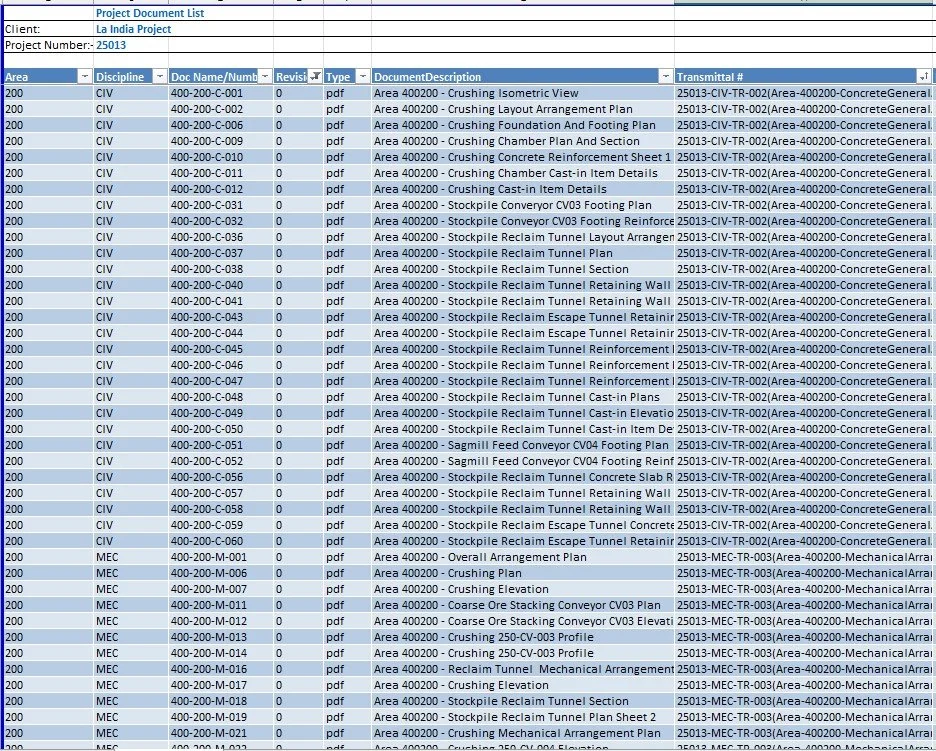

Once all 3D Models, Drawing, Calculations and associated design and BOM Spreadsheets have been completely checked, “Fit For Purpose”, the full set of documents shall be “IFC, Issued For Construction”. The overall project documentation spreadsheet shall also be “IFC” , for document coordination. Associated Weekly Report, Schedule Item List, Schedule GanttChart and Schedule Summary shall be IFC, 100% completion
“IFC” Issued For Construction
